Investment Cast Bottom Bracket Shells

Investment Cast Bottom Bracket Shells: Precision and Performance

The bottom bracket (BB) shell is a critical component of a bicycle frame, directly influencing drivetrain efficiency, stiffness, and overall durability. While various manufacturing methods exist, investment casting (also known as lost-wax casting) has become a favored technique for producing high-quality BB shells, especially for performance-oriented bicycles.

The Investment Casting Process

Investment casting is a precise and repeatable manufacturing process that allows for intricate shapes and tight tolerances. The process begins with creating a wax pattern of the desired BB shell geometry. This wax pattern is then coated with a ceramic slurry, which hardens to form a mold. The wax is melted out (hence the “lost-wax” name), leaving a hollow ceramic mold. Molten metal, typically steel or titanium for BB shells, is poured into the mold. Once the metal solidifies, the ceramic mold is broken away, revealing the cast BB shell. Finishing processes, such as machining and surface treatments, are then applied to achieve the final dimensions and desired surface finish.

Advantages of Investment Cast BB Shells

  • Design Freedom: Investment casting allows for the creation of complex shapes that would be difficult or impossible to achieve with other methods, such as machining or forging. This design freedom allows frame builders to optimize the BB shell for stiffness, weight, and aesthetics. Intricate features like integrated cable routing guides or reinforcement ribs can be incorporated directly into the casting.
  • High Precision and Accuracy: The process yields parts with tight tolerances and excellent dimensional accuracy, crucial for proper BB bearing fit and overall drivetrain performance. This precision minimizes play and friction, maximizing power transfer.
  • Excellent Surface Finish: Investment casting provides a relatively smooth surface finish compared to other casting methods. This reduces the amount of post-casting machining required, saving time and resources.
  • Material Properties: The investment casting process allows for the use of a wide range of metals, enabling frame builders to choose materials that offer specific strength, stiffness, and corrosion resistance characteristics.
  • Reduced Material Waste: Investment casting is a relatively efficient process with minimal material waste. Unused metal can often be recycled, contributing to a more sustainable manufacturing approach.
  • Scalability: Investment casting is suitable for both small-batch and high-volume production runs, making it a versatile option for frame builders of all sizes.

Considerations

While investment casting offers numerous benefits, there are some factors to consider. The initial tooling costs can be higher compared to some other manufacturing methods. The turnaround time for producing investment cast parts can also be longer than some alternative processes. However, the advantages in terms of design freedom, precision, and material properties often outweigh these drawbacks, particularly for high-performance bicycle frames.

Conclusion

Investment casting is a powerful manufacturing technique for producing high-quality bottom bracket shells. Its ability to create complex shapes with tight tolerances and excellent surface finish makes it a preferred choice for frame builders seeking to optimize the performance and durability of their bicycles. As material science and casting techniques continue to evolve, investment cast BB shells will likely play an increasingly important role in the future of bicycle frame design.

bottom bracket shells 984×1356 bottom bracket shells from www.framebuilding.com
bottom bracket shell trisled 575×509 bottom bracket shell trisled from trisled.com.au

eccentric bottom bracket shelln problem solvers 1000×1000 eccentric bottom bracket shelln problem solvers from problemsolversbike.com
nagasawa bottom bracket shell 1200×801 nagasawa bottom bracket shell from www.tracksupermarket.com

bottom bracket shell installation tool arab tools 1024×1253 bottom bracket shell installation tool arab tools from arabtoolseg.com
shell bottom bracket 1000×1000 shell bottom bracket from www.ridea-bike.com

bottom bracket shell images stock  vectors shutterstock 600×420 bottom bracket shell images stock vectors shutterstock from www.shutterstock.com
solid bikes mid bottom bracket shell externally relieved 750×750 solid bikes mid bottom bracket shell externally relieved from solidbikes.bigcartel.com

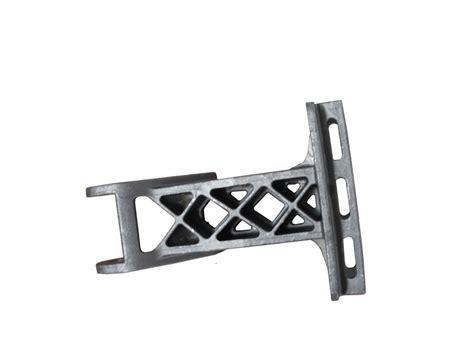

roller bracket manufacturer  supplies  australia china acast 1066×800 roller bracket manufacturer supplies australia china acast from www.acast.com.au
